Grilles

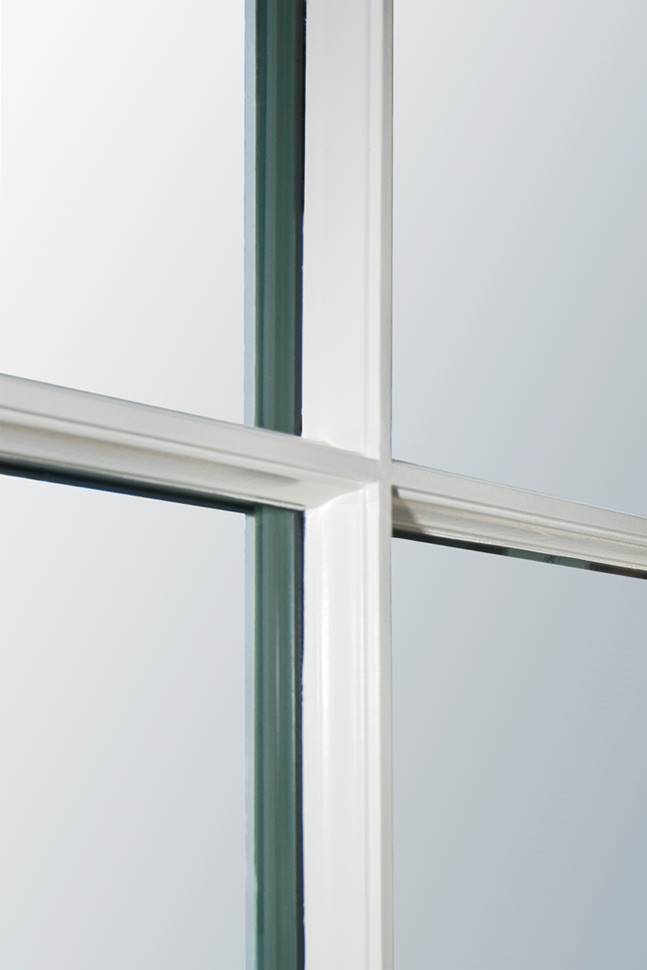

Choose from a wide selection of SDL patterns, including traditional, QueenAnne, gothic, diamond and spider web designs.Radius, oval and hub designs are also available. Our standard SDL profile is 7/8" wide with 5/8",  1 1/4'" and 1 3/4'" as optional widths.

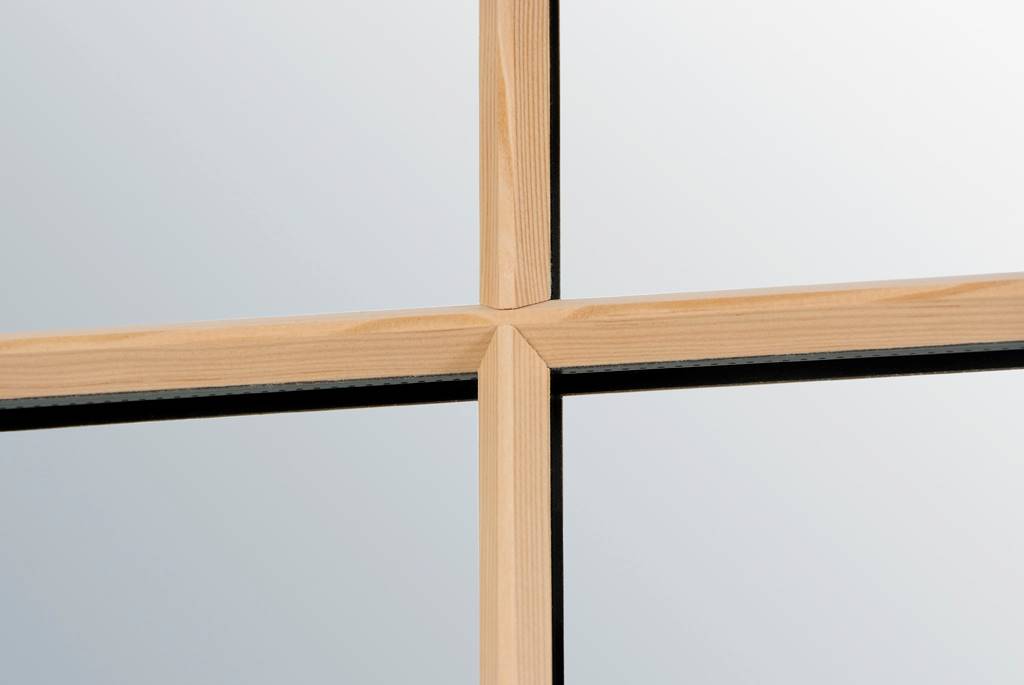

This design will undoubtedly accentuate the contemporary feel to your home. Available in sizes 5/8", 7/8" et 1 1/4" for all wood products and aluminum clad products.

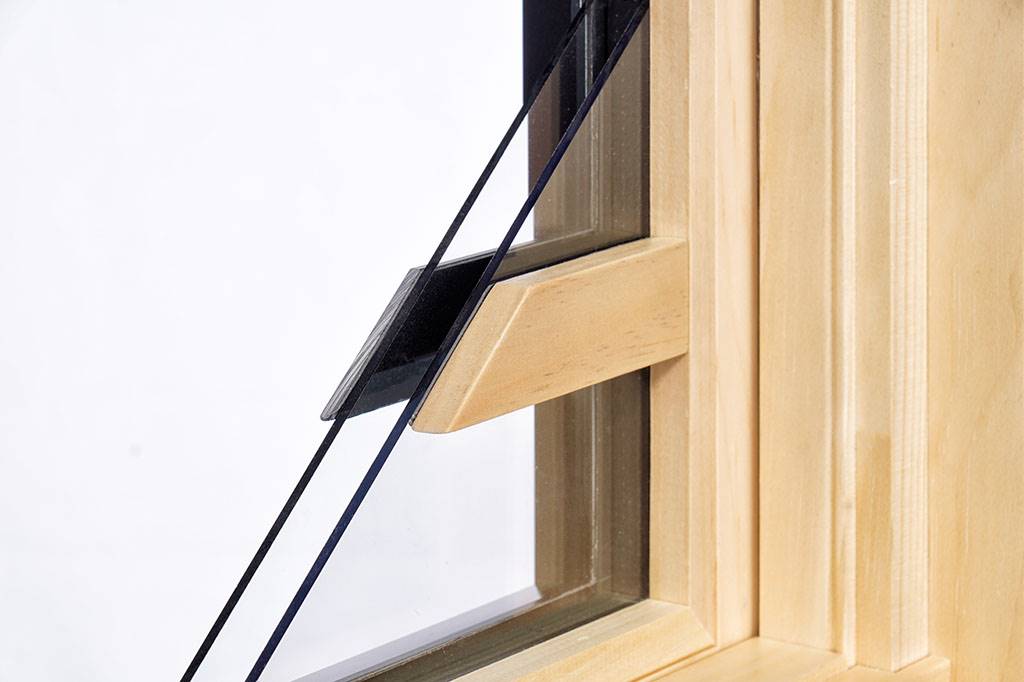

A luxurious option with timeless authenticity and elegance, each separate lite is individually installed in a solid wood frame.TDL bars can be vertical or horizontal and can be combined with SDL bars.

The Putty Glaze SDL has a squarer design that goes very well as a contemporary style to a historic style. It is available in 5/8", 7/8" and 1¼" for the wood products and 7/8'' for aluminum clad products.

The Davis SDL has many similarities with the standard version but is much larger. They’re installed only on the inside of the window and spectacular effect to large dimensions units. It is available on the 2¼"  sash only.

The Hudson SDL shares many similarities with the standard version but features a much deeper interior profile. It is installed exclusively on the interior side of a 2 1/4" thick sash with insulated glass and can also be used with single glass on the interior side of a 1 3/4" sash.

The Monomoy SDL offers the flexibility to be used on the interior of both 1 3/4" and 2 1/4" sashes. By developing a taller glazing stop for the 2 1/4" sash, we were able to use the thinner SDL in applications where the thicker sash was required.

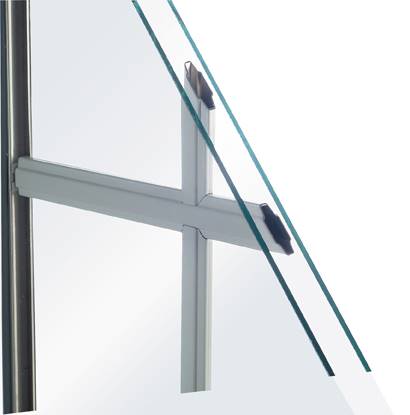

The most economical option, aluminum grilles are permanently fixed between two frames of glass, providing style and cleaning convenience. A variety of profiles and colors are available.
